Brand Name : | Huashengxin |
Model Number : | 113098 |
Certification : | UL , ISO9001 |
Payment Terms : | T/T |
Delivery Time : | fastest 24 hours for 2L and 4L prototype, 3 days for HDI board production |

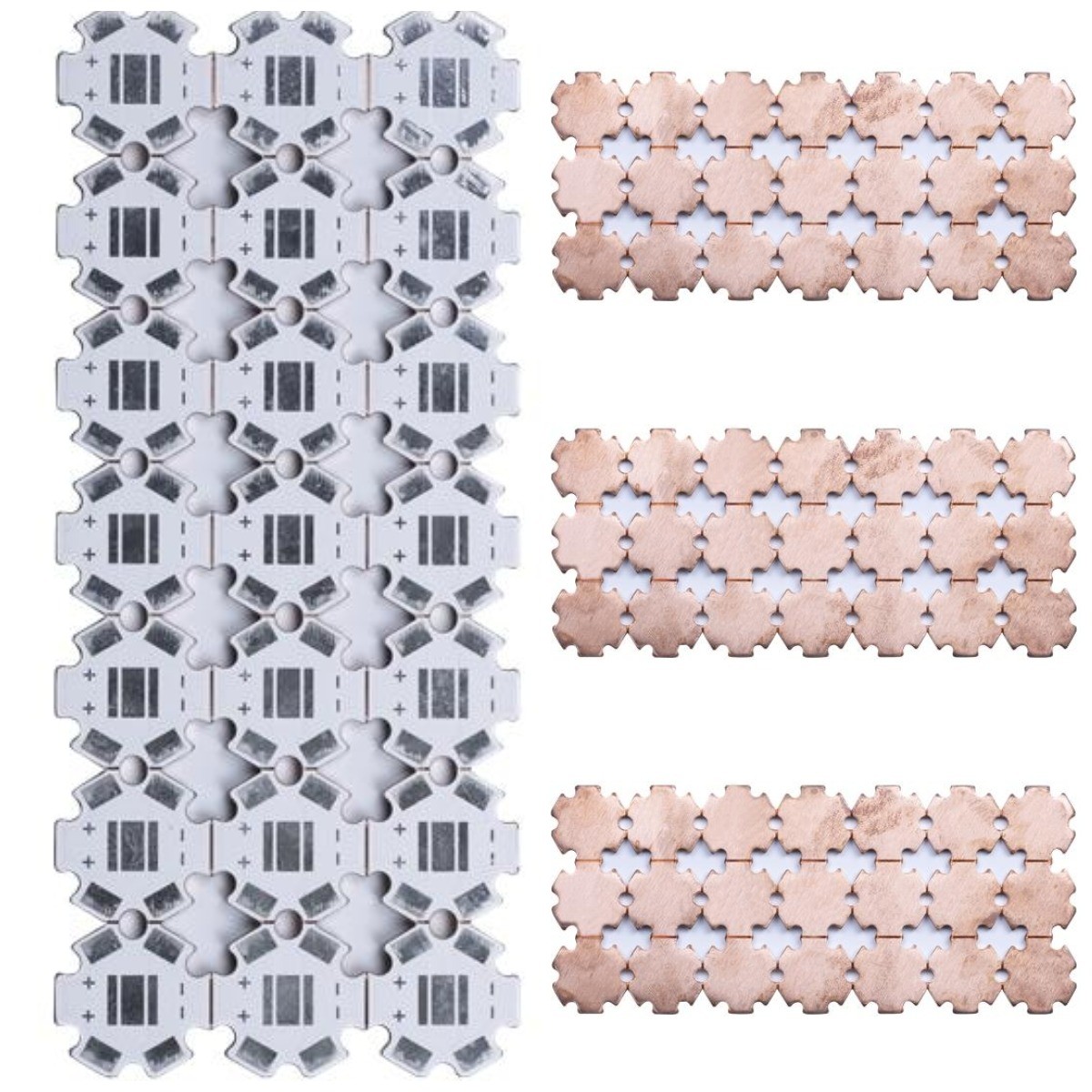

HASL Lead Free Copper Circuit Board 2.0mm Thick Copper Pcb 1 Layer
Copper PCB Board PCB Board Manufacturing HASL Lead Free PCB Copper Base Printed Circuit Board
1L Copper Base Printed Circuit board
Copper-based PCB or copper core PCB is a metal core PCB using copper as the base material. Like all metal core PCBs, it also has three main layers. The top layer is made of copper, which is responsible for the electrical connection between the components. This layer is standard in all types of PCBs. The second layer is the dielectric layer that prevents current from the top layer to the base layer. Although this layer is electrically an insulator, it is a good conductor of heat. It transfers the heat produced by the components and helps in heat dissipation. The bottom layer of the PCB is copper, which is why it is a copper core PCB.
Copper-based PCB provide the best performance among all-metal core PCBs. These PCBs are used for particular purposes, including high-frequency circuits and high-temperature variations. They can dissipate heat better than iron and aluminum core PCBs.
Laminate type/brand: | Cu | Circuit board layer: | 1 layer |
PCB Board thick: | 2.0 MM | Different Copper thickness: | 1/0 OZ |
Thermal Conductivity | 10 W/ m·K | Finished Board profile: | V-CUT/Punching |
Solder resist details: | White | Break down voltage | 4KV |
Legend details: | None | surface details: | LFHASL |
Circuit Board usage: | Power supply devices |
FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn
prototype PCB manufacturing & big volume PCB production lines.
Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)
Q3:Are my PCB files safe when I submit them to you for
manufacturing?
A: We respect customer's copyright and will never manufacture PCB
for someone else with your files unless we receive written
permission from your side, nor we'll share these files with any
other 3rd parties. And we could sign NDA with client if necessary.
Q4:If we have no PCB file/Gerber file, only have the PCB sample,can
you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB
to us, we could clone the PCB design and work out it.
Q5:What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn
services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn
services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
Q6:What payment do you accept ?
A: Wire Transfer(T/T) or Letter of Credit(L/C) or Paypal(only for
small value less than 500usd)
![]() |
