Multilayer Printed Circuit Board Rigid PCB Rigid Circuit FR4 94V0 With ENIG Surface And Green Solder Mask

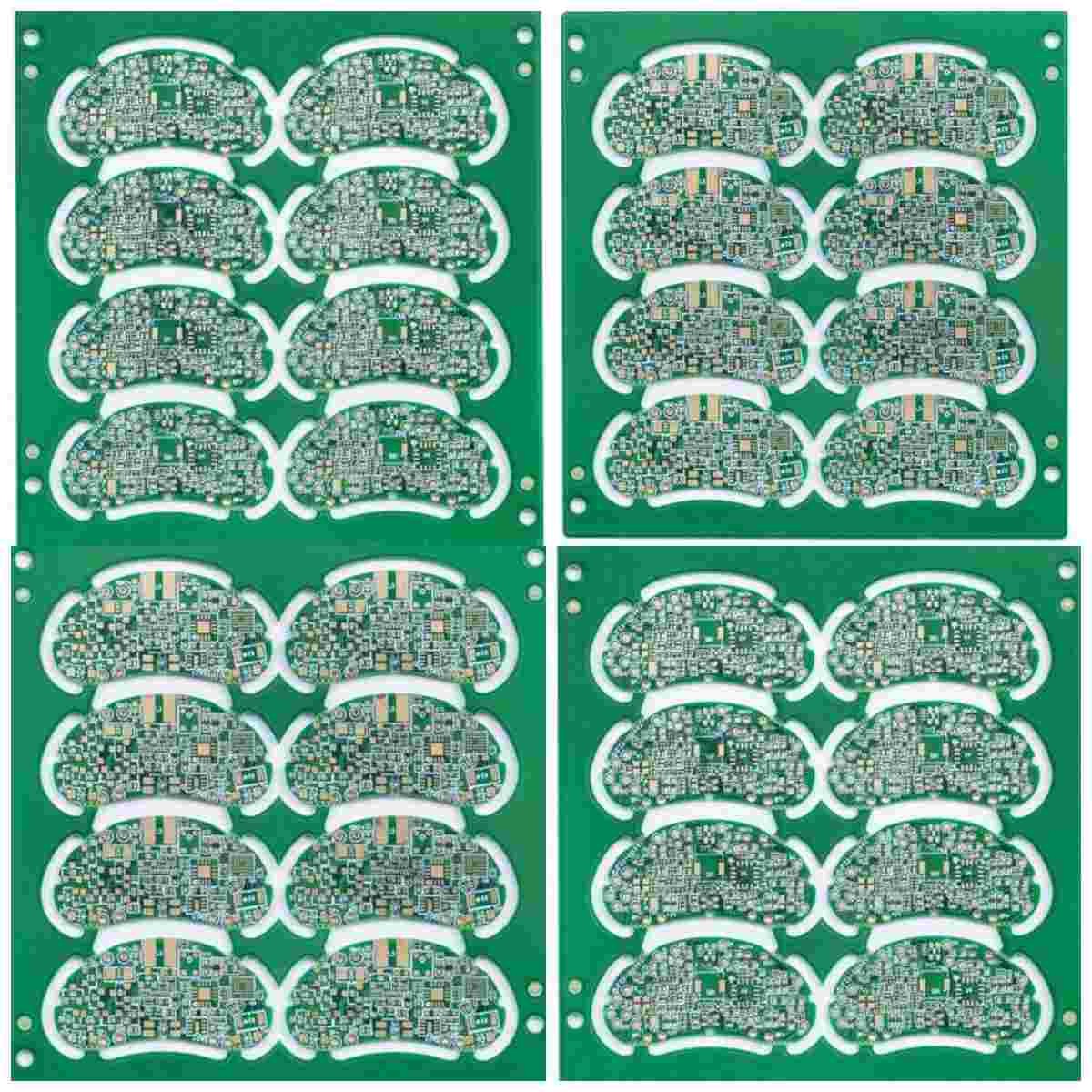

8L GREEN PCB WITH ENIG SURFACE

Rigid PCBs are a form of printed circuit board which are solid and inflexible in their structure, and therefore they cannot be bent or flexed. They’re made up of several different layers, including a substrate layer, a copper layer, a solder mask layer and a silk screen layer, which are joined together via adhesive and heat.

Printed circuit boards include single layer, double layer and multilayer circuit, rigid PCBs can take any of these forms depending on the requirements needed. However, once they have been manufactured they cannot be modified or changed.

Applications of Rigid PCBs:

• Computers and Laptops
• Telecommunications Equipment – Mobile Phone, Tablets and different Hand Help Devices
• File server and Data storage
• Signal transmission, cell, smartphone repeaters, GPS
• Satellite
• Medical Equipment: Testing, X-Ray, Heart Monitor, CAT Scan
• Industrial Equipment
• Atomic and Nuclear Systems
• Military and Defense Equipment
• Automotive
• Aerospace

FAQ:

Q1:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)

Q2. What any other information should be offered except for file?

A: Following specifications are needed for quotation:
1) Base material
2) Board thickness:
3) Copper thickness
4) Surface treatment:
5) color of solder mask and silkscreen
6) Quantity

Q3. No PCB file/GBR file, only have the PCB sample, can you produce it for me?

A: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q4. What’s the BOM?

A: BOM is a Bill of Materials that list the components required to build your project. BOM’s include part number, brand, reference designator , quantity, and description of parts that need to be assembled.

Q5. Where are your circuit boards manufactured?

A: As a China-based professional PCB manufacturer, all circuit boards are manufactured in China.

Founded in 2010, Shenzhen Huashengxin Circuit is a professional manufacturer for printed circuit boards. HSX Circuit provides flexible quick turn production services (12hours to 72 hours), as well as small volume to big volume PCB manufacturing. Its products covers 1~32L FR-4 PCB, IMS PCB, HDI Boards, high frequency PTFE boards and Rigid-flex boards etc.

Under the support of high-educated and experienced team and advanced production equipment, HSX Circuit has won great reputation from the global markets because of its professional services and high quality products.

HSX Circuit covers a total production area of 10,000 square meters, employs more than 350 workers, produces over 5,000 PCB types monthly. Its products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.
