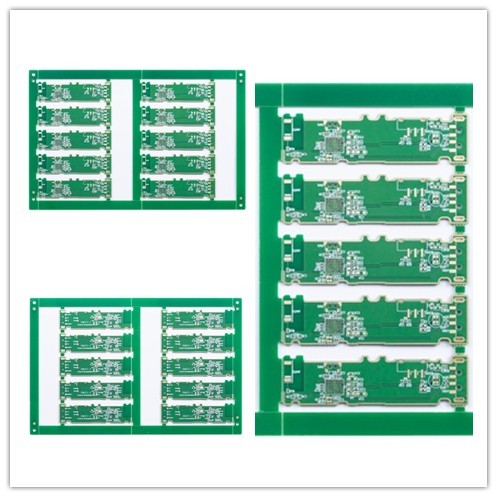

Multilayer Printed Circuit Board 4 Layer PCB Main Printed Circuit
Board Small Printed Circuit Board

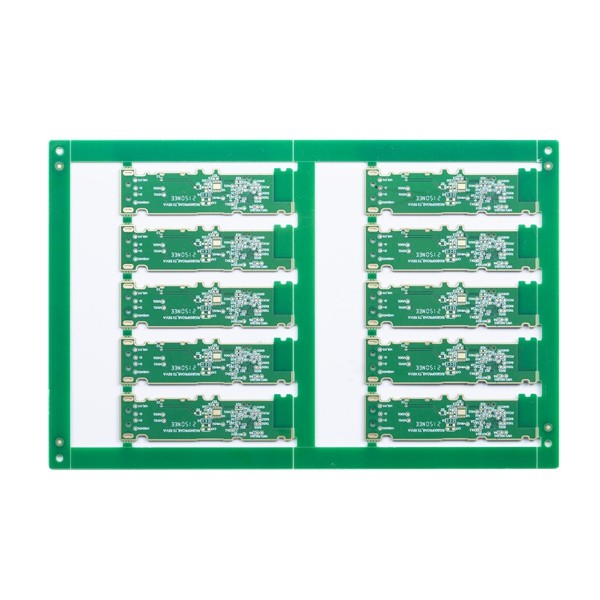

4 Layer Rigid Printed Circuit Board
HSX Circuit covers over 5,000 PCB products monthly, from single
layer to 32L FR-4 PCB, from IMS PCB,HDI Boards, to high frequency
PTFE boards and Rigid-flex boards. We provides flexible quick turn
production services (12 hours to72 hours), as well as small volume
to big volume PCB manufacturing.
Products are widely used in high-tech fields such as
communications, power supplies, computer networks, digital
products, industrial control, science and education, medical
devices, and aerospace.
Max layers: 32layer (≥20 layer needs to review)
Max finish panel size: 740* 500 MM(>600 MM needs to review)
Min finish panel size: 5 * 5mm
PCB material: PI +FR4,FR4, Rogers...
PCB thickness: 0.2~4.0mm(＜0.2 mm,＞4 mm needs to review) (Board thickness ≤ 0.6mm,do not
apply for HASL surface)
copper thickness of inner and outer base copper: Min 0.3/0.5oz,Max
3oz, advance 4-6oz
Bow and twist: 0.075%
Min. hole size: 0.15mm(＜0.15 mm needs to review)
HDI Min drill hole: 0.08-0.10MM
PCB track/gap: 3mil(0.075mm)
PCB outline: Routing/V-CUT/Punching
Solder mask thickness: standard 15-20um; Advanced: 35um
Min solder mask bridge width: green 4mil,other colour 4.8mil
Solder mask filling holes: 0.1-0.5mm
The color of solder mask: green,matt green,blue,matt blue,black,matt
black,yellow,red,white,etc
PCB silkscreen: White, Black and as your request
Peelable mask thickness: 500-1000um
Oxidation film of OSP: 0.2-0.5um
| PCB Layer | 4L | PCB material | FR4 |
| Copper thickness | 1/1/1/1OZ | PCB thickness | 1.0MM |
| Min. hole size | 0.15mm | Min.PCB track/gap: | 3/3mil |
| PCB solder mask | Green | PCB silkscreen | White |
| PCB surface finished | Immersion Gold | PCB outline | Routing/V-CUT |
| Application | communications |
| Special requirement: | small line space and gap:3/3mil/min. via hole size 0.15mm/impedance
control//resin filled and plated over |
FAQ:
Q1:Could you provide PCB Assembly services and components sourcing?
A: Yes, we could also provide components sourcing and PCB Assembly
services as well as box build if request.
Q2:Which countries have you worked with?
A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran,
Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India
etc.
Q3:Are my PCB files safe when I submit them to you for
manufacturing?
A: We respect customer's copyright and will never manufacture PCB
for someone else with your files unless we receive written
permission from your side, nor we'll share these files with any
other 3rd parties. And we could sign NDA with client if necessary.
Q4:If we have no PCB file/Gerber file, only have the PCB sample,can
you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB
to us, we could clone the PCB design and work out it.
Q5:What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn
services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn
services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
