Multilayer Printed Circuit Board 10L Board Small Line Space
Impedance Control TG170 Multilayer Circuit Board

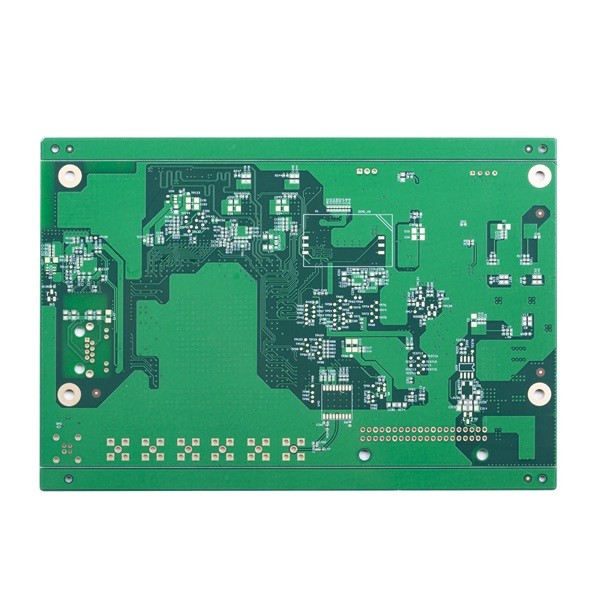

8 Layer PCB with Small Line Space
Max layers: 32layer (≥20 layer needs to review)
Max finish panel size: 740* 500 MM(>600 MM needs to review)
Min finish panel size: 5 * 5mm
PCB material: PI +FR4,FR4, Rogers
PCB thickness: 0.2~4.0mm(＜0.2 mm,＞4 mm needs to review) (Board thickness ≤ 0.6mm,do not
apply for HASL surface)
copper thickness of inner and outer base copper: Min 0.3/0.5oz,Max
3oz, advance 4-6oz
Bow and twist: 0.075%
Min. hole size: 0.15mm(＜0.15 mm needs to review)
HDI Min drill hole: 0.08-0.10MM
PCB track/gap: 3mil(0.075mm)
PCB outline: Routing/V-CUT/Punching
Solder mask thickness: standard 15-20um; Advanced: 35um
Min solder mask bridge width: green 4mil,other colour 4.8mil
Solder mask filling holes: 0.1-0.5mm
The color of solder mask: green,matt green,blue,matt blue,black,matt
black,yellow,red,white,etc
PCB silkscreen: White, Black and as your request
Peelable mask thickness: 500-1000um
Oxidation film of OSP: 0.2-0.5um
| Circuit board Layer count: | 8L | Circuit board laminate: | FR4 TG180 |
| Layer Copper thick: | 1/1/1/2/2/1/1/1oz | Board thickness: | 1.6MM |
| Smallest hole size: | 0.20mm | Smallest PCB track/gap: | 3/3mil |
| Solder mask color: | Green | Silk screen color: | White |
| PCB surface finished: | Immersion Gold | Board profile: | Routing/V-CUT/Punching |
| PCB Board Application: | digital products |
| Requesting Special requirement: | small line space and gap:3/3mil//impedance control/BGA |
FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn
prototype PCB manufacturing & big volume PCB production lines.
Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)
Q3:Are my PCB files safe when I submit them to you for
manufacturing?
A: We respect customer's copyright and will never manufacture PCB
for someone else with your files unless we receive written
permission from your side, nor we'll share these files with any
other 3rd parties. And we could sign NDA with client if necessary.
Q4:If we have no PCB file/Gerber file, only have the PCB sample,can
you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB
to us, we could clone the PCB design and work out it.
Q5:What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn
services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn
services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
Q6:What payment do you accept ?
A: Wire Transfer(T/T) or Letter of Credit(L/C) or Paypal(only for
small value less than 500usd)
