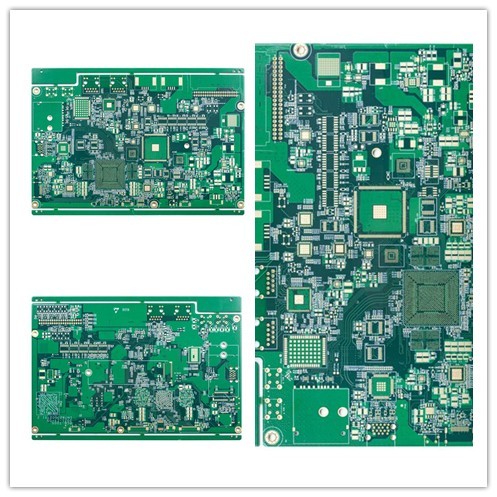

Multilayer Printed Circuit Board 10L Board Resin Plugged Hole Board
Impedance Control small BGA
10 Layer PCB Resin Plugged Hole Board
Max layers: 32layer (≥20 layer needs to review)
Max finish panel size: 740* 500 MM(>600 MM needs to review)
Min finish panel size: 5 * 5mm
PCB material: PI +FR4,FR4, Rogers
PCB thickness: 0.2~4.0mm(＜0.2 mm,＞4 mm needs to review) (Board thickness ≤ 0.6mm,do not
apply for HASL surface)
copper thickness of inner and outer base copper: Min 0.3/0.5oz,Max
3oz, advance 4-6oz
Bow and twist: 0.075%
Min. hole size: 0.15mm(＜0.15 mm needs to review)
HDI Min drill hole: 0.08-0.10MM
PCB track/gap: 3mil(0.075mm)
PCB outline: Routing/V-CUT/Punching
Solder mask thickness: standard 15-20um; Advanced: 35um
Min solder mask bridge width: green 4mil,other colour 4.8mil
Solder mask filling holes: 0.1-0.5mm
The color of solder mask: green,matt green,blue,matt blue,black,matt
black,yellow,red,white,etc
PCB silkscreen: White, Black and as your request
Peelable mask thickness: 500-1000um
Oxidation film of OSP: 0.2-0.5um
| Circuit board Layer count: | 10 L | Circuit board laminate: | FR4 TG170 |
| Layer Copper thick: | Outer 1oz Inner 1oz | Board thickness: | 1.6MM |
| Smallest hole size: | 0.20mm | Smallest PCB track/gap: | 4/4mil |
| Solder mask color: | TAIYO Green | Silk screen color: | White |
| PCB surface finished: | Immersion Gold | Board profile: | Routing |
| PCB Board Application: | digital products |
| Requesting Special requirement: | impedance control/resin filled and plated over/0.25mm BGA |
