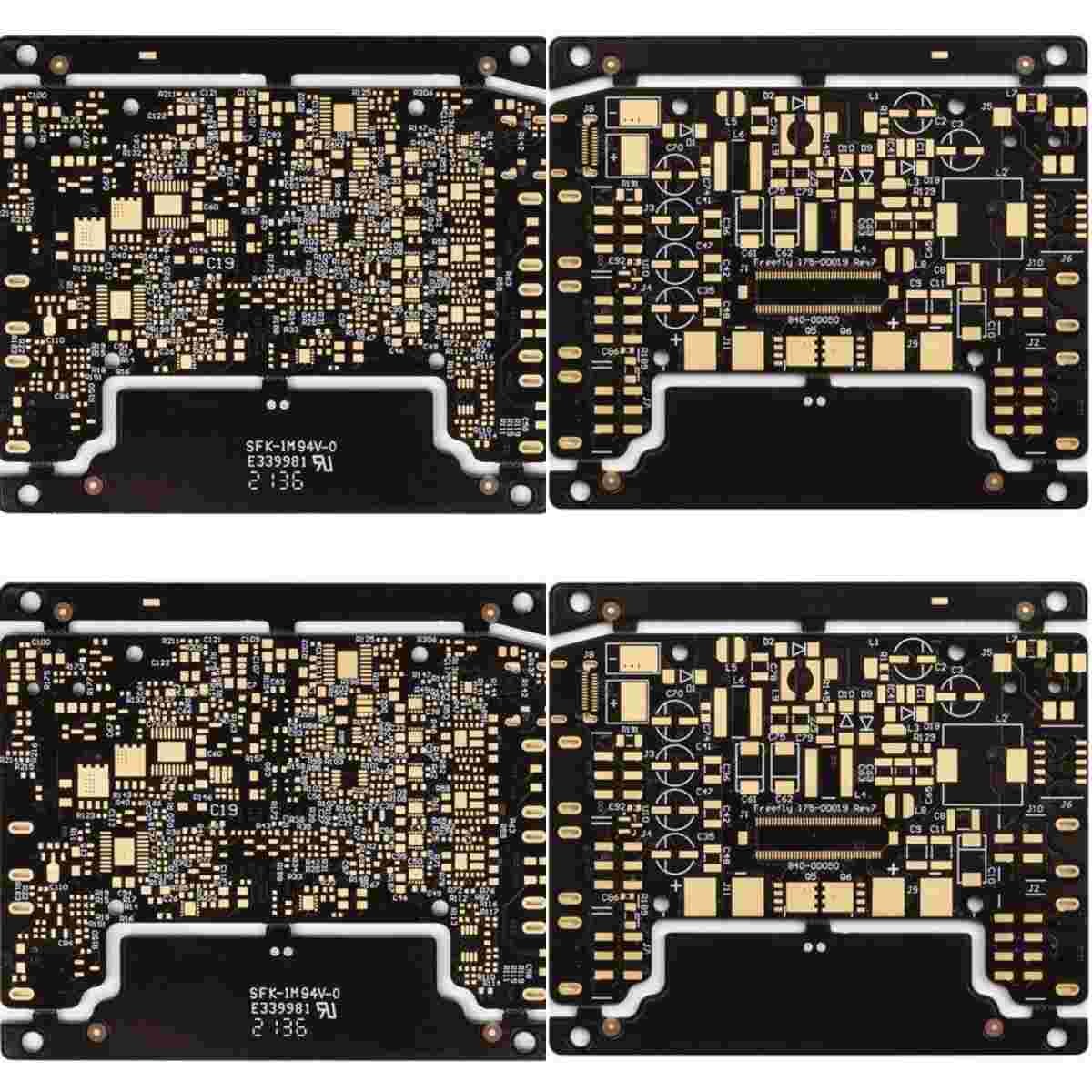

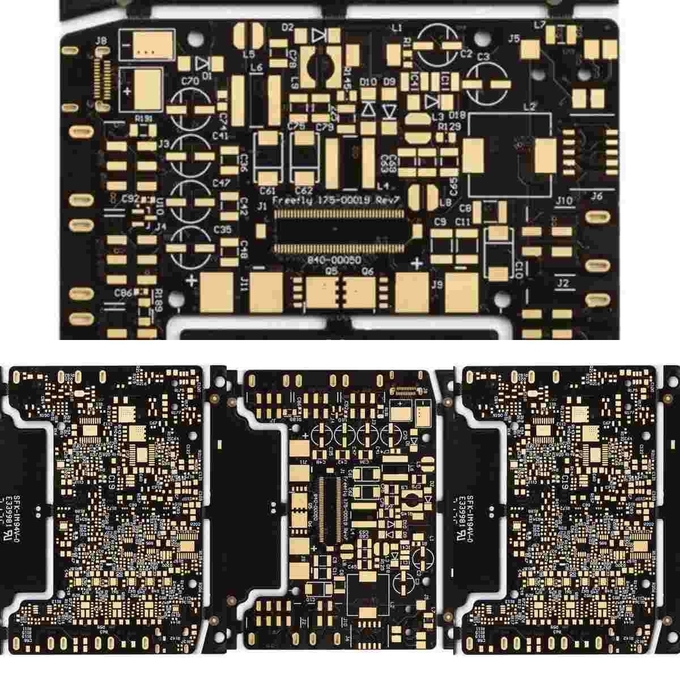

1.2mm 8 Layer HDI PCB Board
HDI PCB Board PCB Board Assembly PCB And PCBA 8 Layer PCB Quick PCB
Prototype Low Volume PCB High Frequency PCB
8L 3+N+3 HDI Boards
What’s HDI PCB? High-density interconnect (HDI) PCBs are
characterized by finer lines, closer spaces, and more dense wiring,
which allow for a faster connection while reducing the size and
bulk of a project. These boards also feature blind and buried vias,
laser ablated microvias, sequential lamination, and via in-pads.
As a result, a HDI board can house the functionality of the
previous boards used. MADPCB is an HDI PCB manufacturer and
provider in Shenzhen, China supports HDI PCB prototype and mass
production with less expensive price and quick-turn lead time.
Customers from a variety of industries we serve have a common that
have high expectations in quality, reliability and on-time delivery
in HDI PCB production. Our quality is not afterthought, but built
into each process from front-end to fabrication and shipping.
| Layer counts: | 8 layer | Circuit board laminate: | FR4 TG170 S1000-2 |
| Different Copper thickness: | 2/1/1/1/1/1/1/2OZ | PCB Board thick: | 1.2 MM |
| Smallest Mechanical drilling hole: | 0.25 mm | Min. line distance/space: | 4/6mil |
| Solder mask color: | Black color KSM | Legends' color: | White color |
| PCB surface finished: | Immersion Gold | Board profile: | Milling |
| PCB Board Application: | industrial control |
| Requesting Special requirement: | HDI Buried vias and blind vias, three step stack up /impedance
control/resin filled and plated over |
FAQ:
Q1:Are you a factory or trade company?
A: Yes, we are the factory, we have independent quick turn
prototype PCB manufacturing & big volume PCB production lines.
Q2:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)
Q3:Are my PCB files safe when I submit them to you for
manufacturing?
A: We respect customer's copyright and will never manufacture PCB
for someone else with your files unless we receive written
permission from your side, nor we'll share these files with any
other 3rd parties. And we could sign NDA with client if necessary.
Q4:If we have no PCB file/Gerber file, only have the PCB sample,can
you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB
to us, we could clone the PCB design and work out it.
Q5:What is your standard lead time for PCB?
A: Sample/prototype(less than 3sqm):
1-2 Layers: 3 to 5working days (fastest 24hours for quick turn
services)
4-8 Layers: 7~12 working days (fastest 48hours for quick turn
services)
Mass production (less than 200sqm):
1-2 Layers:7 to 12 working days
4-8 Layers:10 to 15 working days
Q6:What payment do you accept ?
A: Wire Transfer(T/T) or Letter of Credit(L/C) or Paypal(only for
small value less than 500usd)
