Double Layer Rigid Flex PCB Prototype 4mil Immersion Gold Lead Free

Rigid Flex PCB Custom PCB Flex Pcb Prototype Double Layer PCB Double Sided PCB Board Immersion Gold PCB

2L Flex Rigid printed circuit board

PCB Type: 2LRigid flex PCB

PCB Layer: Rigid 2L +Flex 2L

PCB material: FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled, Polyimide...

Surface finished: Immersion gold 3u"

Copper thickness: 1/3oz base copper

Smasllest drilling size: 0.2mm

smallest trace/space:4mil/4mil

Solder mask: Green, both sides

Legend: White, both sides

Application: telecommunication product

Rigid PCBs' applications range from small electrical devices to large aerospace, military and medical fields. And flex printed circuit boards are built of flexible substrate. They have lower thickness, lighter weight, and they are dynamically bendable, so they can save space They also have equally vast applications because of their excellent electrical and thermal performance.

Flex-rigid PCBS are boards which combile the technology of flexible board and rigid board. They consist of multiple layers of flexible circuit substrates attached to one or more rigid boards either externally or internally. Therefore they own the advantages of both rigid printed circuit boards and flex circuit boards. Rigid-Flex products provide reliable integration of multiple rigid printed circuit board assemblies into a single PCB module capable of supporting assembly, space/weight savings, and mechanical stability.

The advantages of rigid flex board includes:

1) ruducing products' weight

2) temperature resistance is excellent

3) being more flexible

4) with good reliability

Founded in 2010, Shenzhen Huashengxin Circuit is a professional manufacturer for printed circuit boards. HSX Circuit provides flexible quick turn production services (12hours to 72 hours), as well as small volume to big volume PCB manufacturing. Its products covers 1~32L FR-4 PCB, IMS PCB, HDI Boards, high frequency PTFE boards and Rigid-flex boards etc.

Under the support of high-educated and experienced team and advanced production equipment, HSX Circuit has won great reputation from the global markets because of its professional services and high quality products.

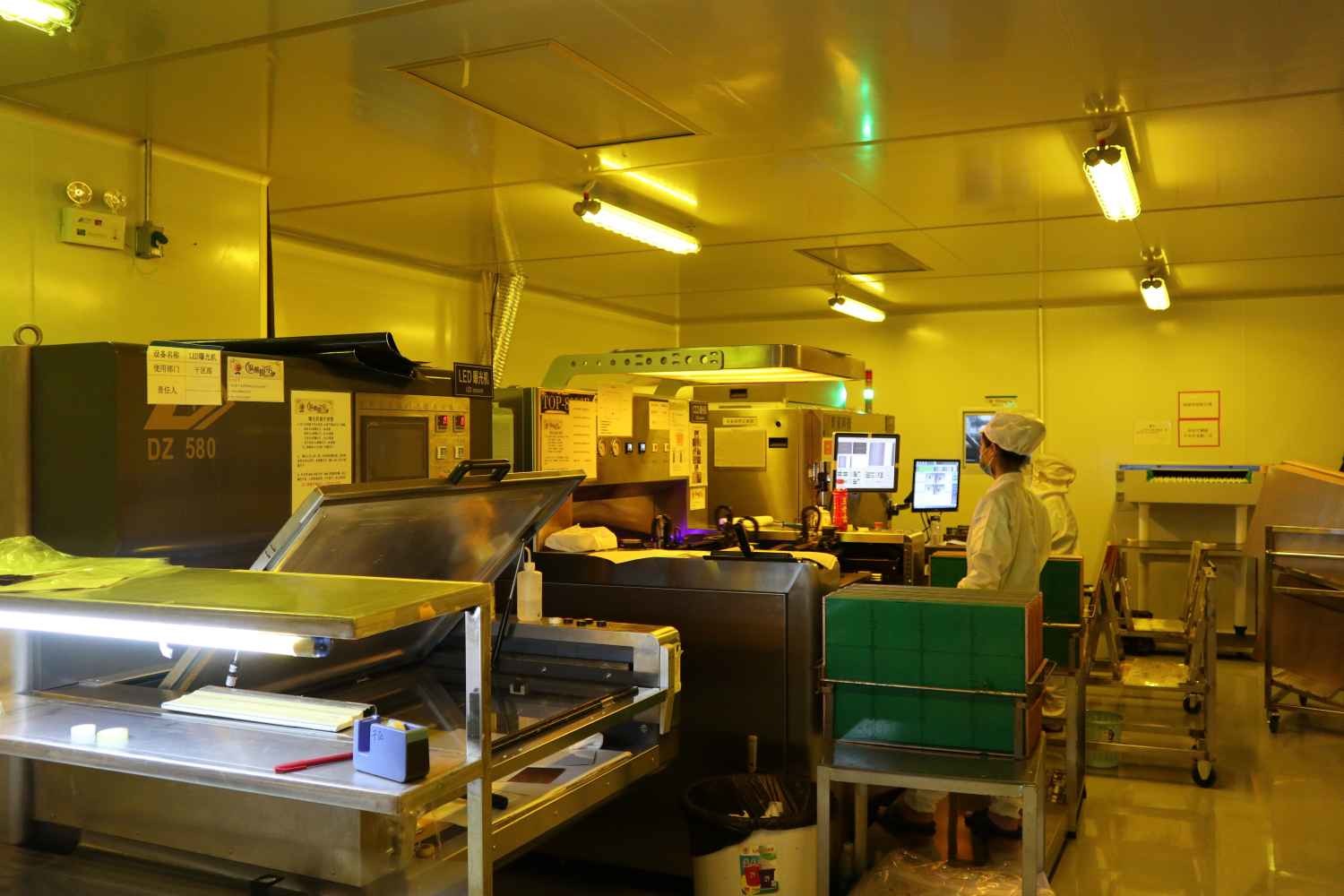

HSX Circuit covers a total production area of 10,000 square meters, employs more than 350 workers, produces over 5,000 PCB types monthly. Its products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.
