    2.4mm 8L Multilayer Printed Circuit Board

    Ask Lasest Price
    Brand Name : Huashengxin Circuit Limited
    Model Number : 8L PCB Printed Circuit Board
    Certification : UL ,ISO 9001
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : Fastest 24H for 2L and 4L board
    • Product Details
    • Company Profile

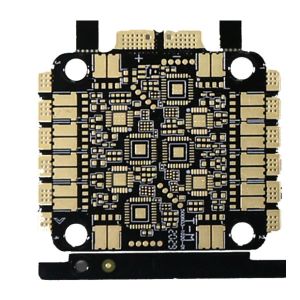

    2.4mm 8L Multilayer Printed Circuit Board

    2.4mm 8L Multilayer Printed Circuit Board


    Multilayer Printed Circuit Board 8L PCB Printed Circuit Board Gold Finger and Bevel, ENIG 4u


    8L PCB Printed Circuit Board


    Layers:1-32layer, if the layer is 20L or mare than 20L, will need to review the board.

    The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.

    The Minimum panel size is 5 * 5mm.
    Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...
    PCB thickness capability is from 0.2~4.0mm, if thickness less than 0.2 mm, or more than 4 mm, will needs to review.

    PCB copper thickness capability is H~5oz. If more than 5oz, will need to review it at first.

    Bow and twist tolerance is 0.075%.

    The minimum hole size is 0.15mm, if drilling size is smaller than 0.15mm, will need to confirm the board at first.

    The max hole size is 6.0mm, if hole size more than 6mm, will need to use milling to enlarge holes.

    The color of printed circuit board include green, matt green,blue, matt blue, black, matt black, yellow, red, white, and so on.
    The color of silkscreen color: include white, black and so on.
    Printed circuit board surfaces include HASL lead free, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger,etc.


    PCB Layer8L PCB Printed Circuit Board
    PCB surfaceENIG 4u"
    PCB materialRogers
    PCB thickness2.4mm finished
    Min. hole size0.2mm
    PCB solder maskBlack for both side
    PCB LegendWhite for both side
    PCB Copper3/2/2/2/2/2/2/3oz finished
    Special request25um hole copper, gold finger and bevel
    Application

    Industry control


    2.4mm 8L Multilayer Printed Circuit Board


    2.4mm 8L Multilayer Printed Circuit Board


    FAQ:

    1. What service can you provide?

    Printed Circuit board, Printed Circuit Assembly, Rapid Prototype order


    2. How fast is your lead time?

    HDI board fastest 3 WDs, 2L and 4L Rigid board fastest 24H


    3. How to get quick quotation?

    Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)

    Sample:

    PCB Layer4L
    PCB surfaceENIG
    PCB materialFR4, TG135
    finished Copper thickness2/2/2/2oz
    solder mask colorDouble side, red
    SilkscreenDouble side, black
    Quantity1000pcs, 2 weeks

    4.What payment terms do you have?

    T/T
