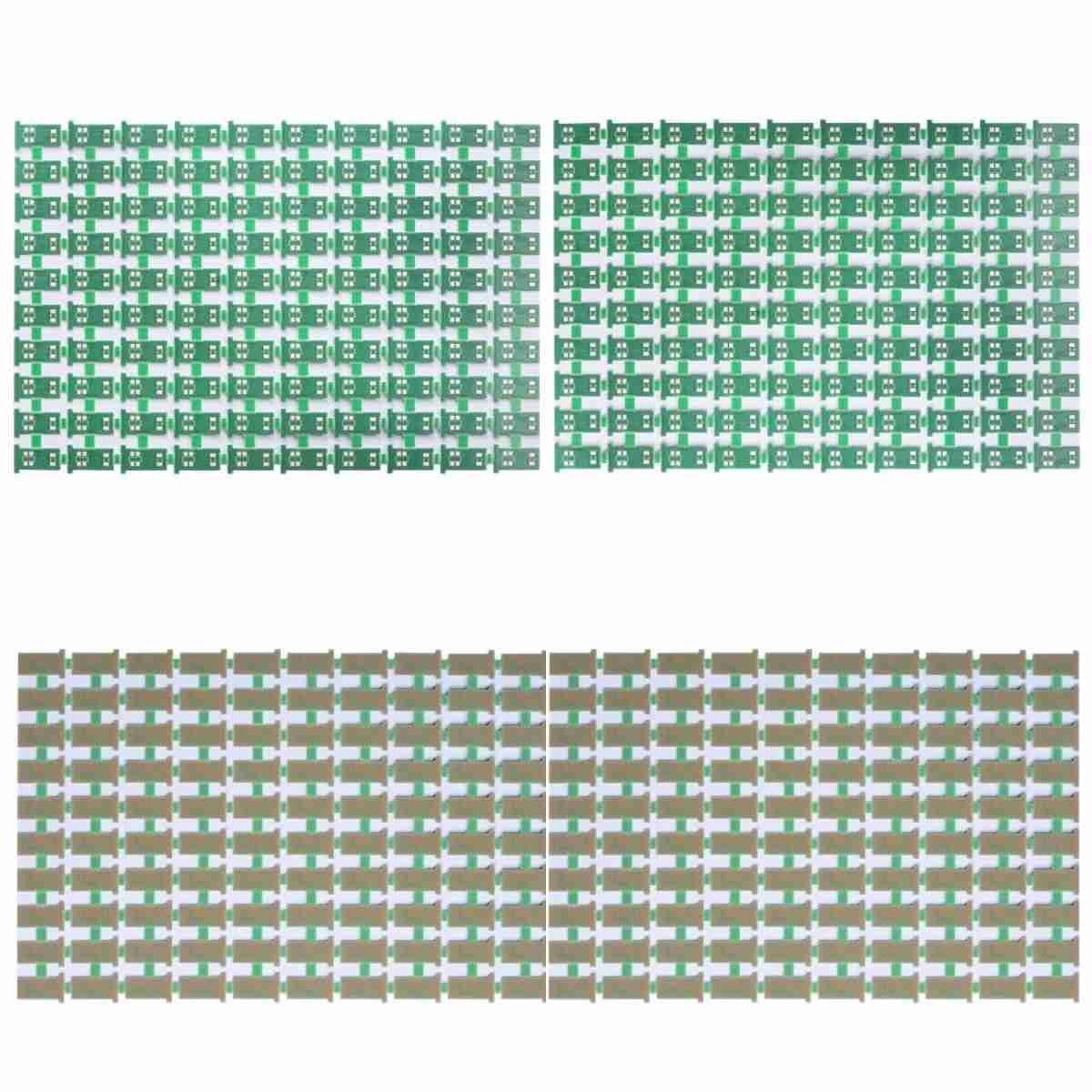

Green Solder Mask FR4 Single Sided PCB Board 0.4mm Halogen Free

    Buy cheap Green Solder Mask FR4 Single Sided PCB Board 0.4mm Halogen Free from wholesalers

    Buy cheap Green Solder Mask FR4 Single Sided PCB Board 0.4mm Halogen Free from wholesalers
    • Buy cheap Green Solder Mask FR4 Single Sided PCB Board 0.4mm Halogen Free from wholesalers
    • Buy cheap Green Solder Mask FR4 Single Sided PCB Board 0.4mm Halogen Free from wholesalers
    • Buy cheap Green Solder Mask FR4 Single Sided PCB Board 0.4mm Halogen Free from wholesalers
    • Buy cheap Green Solder Mask FR4 Single Sided PCB Board 0.4mm Halogen Free from wholesalers

    Green Solder Mask FR4 Single Sided PCB Board 0.4mm Halogen Free

    Ask Lasest Price
    Brand Name : Huashengxin
    Model Number : 134959
    Certification : UL , ISO9001
    Payment Terms : T/T
    Delivery Time : fastest 24 hours for 2L and 4L prototype, 3 days for HDI board production
    • Product Details
    • Company Profile

    Green Solder Mask FR4 Single Sided PCB Board 0.4mm Halogen Free

    Green Solder Mask FR4 Single Sided PCB Board 0.4mm Halogen Free


    Single Sided PCB Thin Printed Circuit Board Digital Products Green Solder Mask FR4 PCB Single Layer PCB


    Single sided Thin Printed Circuit Board


    Layers:1-32layer, if the layer is 20L or mare than 20L, will need to review the board.
    The max finish panel size is 740* 500 MM, but if panel side >600 MM, will need to review it.
    The Minimum panel size is 5 * 5mm.
    Raw materials of Printed circuit boards include FR4, Rogers,Halogen-free, High TG materials...
    PCB thickness capability is from 0.2~4.0mm, if thickness less than 0.2 mm, or more than 4 mm, will needs to review.
    PCB copper thickness capability is H~5oz. If more than 5oz, will need to review it at first.
    Bow and twist tolerance is 0.075%.
    The minimum hole size is 0.15mm, if drilling size is smaller than 0.15mm, will need to confirm the board at first.
    The max hole size is 6.0mm, if hole size more than 6mm, will need to use milling to enlarge holes.
    The color of printed circuit board include green, matt green,blue, matt blue, black, matt black, yellow, red, white, and so on.
    The color of silkscreen color: include white, black and so on.
    Printed circuit board surfaces include HASL lead free, ENIG, Immersion Sn, OSP, Selective ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger,etc.


    HSX products cover 1~32L FR-4 PCB, IMS PCB,HDI Boards, high frequency PTFE boards and Rigid-flex boards etc. It provides flexible quick turn production services (12 hours to72 hours), as well as small volume to big volume PCB manufacturing.Products are widely used in high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace.


    Circuit board Layer count:1LCircuit board laminate:FR4 KB
    Layer Copper thick:1/0OZBoard thickness:0.4MM
    Smallest hole size:0.5mmSmallest PCB track/gap:10/10mil
    Solder mask color:KSM GreenSilk screen color:White
    PCB surface finished:OSPBoard profile:Routing
    PCB Board Application:digital products
    Requesting Special requirement:25um hole copper

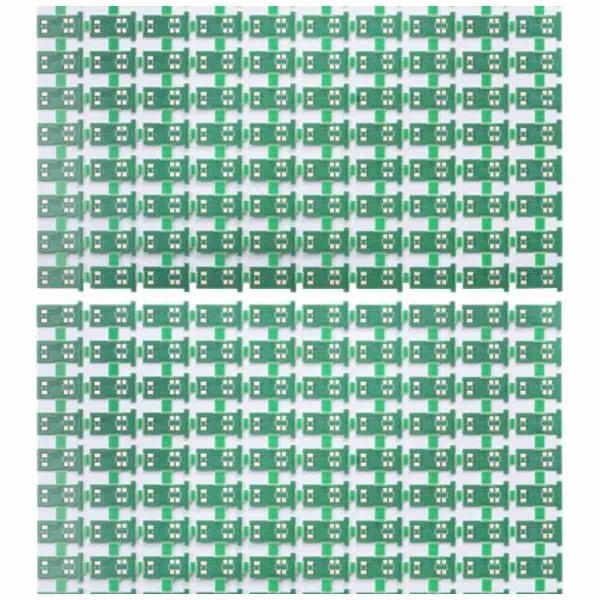

    Green Solder Mask FR4 Single Sided PCB Board 0.4mm Halogen Free


    FAQ:
    Q1:Could you provide PCB Assembly services and components sourcing?
    A: Yes, we could also provide components sourcing and PCB Assembly services as well as box build if request.


    Q2:Which countries have you worked with?
    A:USA, Canada, Italy, Germany, UK, Spain, France, Russia, Iran, Turkey, Czech Republic,Austria, Australia, Brazil, Japan, India etc.


    Q3:Will our PCB files be checked.
    A: Yes. Your data will be checked by our Engineers Team. If we find any technical issues or have any inquires, we will contact you and solve the problems together.


    Q4: Does our product will be tested before shipment.
    A: Yes. We could provide Function Circuit Testing if you provide us the testing methods.


    Q5:Which payment method do you accept?
    A: Wire Transfer(T/T), Letter of Credit(L/C), or Paypal( Paypal is only for small value less than 500usd)
